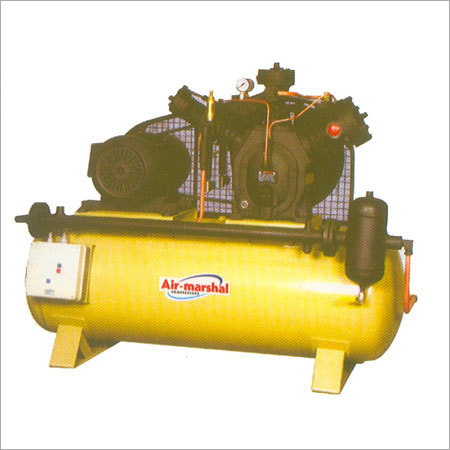

Air Compressor

Air Compressor
Air Compressor
Product Code : JMT14
Brand Name : JAGRUTI MACHINE TOOLS
Product Description

Leveraging on our rich industrial experience of more than two decades, we have become a supreme supplier and trader of wide gamut of Air Compressor. We source these equipments from reliable vendors of the industry who make use of high grade raw materials to manufacture these equipments. Known for features like energy efficient, durable, reliable, vibration free, robust,and the likes, these Air Compressor are widely used in automobile, chemical and sugar industries.



The Compressor having one / two / three piston and cylinder of the same bore size are Single Stage Compressors. The function of each piston is to compress the air from the atmosphere to the final destination.

Single Stage Compressors are ideal for a multitude of small business uses including Pneumatic tools, Panel spray painting, Nailers, Staplers, Blow guns, Liquid transfer, Graniting and Cleaning. It is a reliable source of low pressure air for numerous application like instrumentation, process and boiler fuel oil automization, Chemical Industries, Filteration Plant, Blow Moulding etc.

Technical Specifications (Single Stage Compressor) :

Model
Motor
HP
No.Of
Cylinders
Piston
Displacement CFM
Pressure
PSIG
Receiver
Litre
GC - 285
3.0 / 5.0
2
13.5 / 17.4
80
166 / 200
GC - 294
5.0 / 7.5
2
24.0 / 31.0
80
200 / 240
GC - 305
7.5 / 10.0
2
47.6 / 52.0
80
240 / 300
GC - 57S2
12.5 / 15.0
2
65.8 / 88.0
40
300 / 500
GC - 65S2
15.0 / 20.0
3
99.0 / 132.0
40
500 / 625
GC - 65S2D
30.0 / 40.0
3 + 3
198.0 / 264.0
40
750 / 1000


Two Stage Compressors consist of two or more cylinders. The first stage, low pressure (LP) cylinder is always larger in diameter than the second stage, high pressure (HP) cylinder. The atmospheric air enters into LP Cylinders through inlet filter & valves and passes to HP cylinder through intercooler and HP inlet valves. The air is for higher pressure by HP cylinder and then delivered to final destination. The highly efficient intercooler provides maximum heat dissipation between stages, resulting in more air per horse power and less trouble from carbonization.

These compressors are suitable for applications where air pressure is required upto 17.5 Kg / cm2g (250 psig). They are useful in textile industries, plastic industries, paper industries, spray painting, blowering, cleaning, chemical plants, garages, tyre inflation, pneumatic operations, Engineering Industries, Shot Blasting, Cement Plant, Mining, Pharmaceuticals, Pastiside, Foundry, Oil Industries etc.

Technical Specifications (Two Stage Compressor) :

Model
Motor
HP
No.Of
Piston
Piston
Displacement CFM
Pressure
PSIG
Receiver
Litre
GC - 184 SS
2.0 / 3.0
2
6.0 / 8.5
150
135 / 160
GC - 284
2.0 / 3.0
2
6.7 / 9.8
200
160 / 200
GC - 2390
3.0 / 5.0
2
8.9 / 11.0
200
160 / 200
GC - 292
5.0
2
17.3
200
200 / 240
GC - 2525
5.0 / 7.5
2
17.3 / 22.0
200
200 / 240
GC - 303
7.5
2
23.8
200
240 / 300
GC - 2595
7.5 / 10.0
2
24.0 / 30.0
200
240 / 300
GC - 2650
10.0
2
30.0
200
240 / 300
GC - 121T2
10.0 / 125.5
2
32.9 / 44.0
200
300 / 500
GC - 7150
12.5 / 15.0
2
55.0 / 60.5
200
300 / 500
GC - 65T
15.0 / 20.0
3
54.4 / 81.8
200
500 / 625
GC - 75T
20.0 / 25.0
3
65.8 / 98.7
150
500 / 625
GC - 3050
25.0 / 40.0
3
85.8 / 112.0
150
500 / 625
GC - 65TD
30.0 / 40.0
3 + 3
110.0 / 145.0
150
750 / 1000
GC - 75TD
40.0 / 50.0
3 + 3
132.0 / 166.0
150
750 / 1000

Multistage heavy - duty compressors are designed for high pressure operation upto 70.31 kg / cm2g (1000 psig). These compressors are used in Valve And System Testing, Diesel Engine Starting, Laboratory Test Work, Space And Aviation Industries, Air Blast Circuit Breaking, Dairy, Marine And Military Applications etc.

Technical Specifications (Multi Stage High Pressure Compressor) :

Model
Motor
HP
No.Of
Cylinders
Piston
Displacement CFM
Pressure
PSIG
GC - 281
3.0
2
7.40
500
GC-301
5.0
2
10.80
500
GC - 57T2
7.5 / 12.5
2
24.75 / 36.0
500
GC - 65T HP
15.0 / 20.0
3
54.0 / 65.0
400
GC - 65T HPD
30.0 / 40.0
3 + 3
108.0 / 130.0
400
GC - 65T2
15.0 / 20.0
3
41.25 / 49.0
1000
GC - 65T2D
30.0 / 40.0
3 + 3
82.5 / 98.0
1000

Conversion : 1 cfm = 28.32 litre / min 1 cfm = 0.0283m3 / min
  1m3 / min = 35.31 cfm 1 kg / cm2 = 14.22 psig
