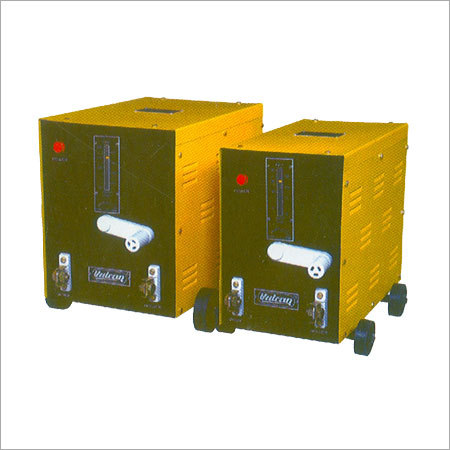

ARC Welding Transformer

ARC Welding Transformer
ARC Welding Transformer
Product Code : JMT23
Brand Name : JAGRUTI MACHINE TOOLS
Product Description

We are one of the foremost suppliers and traders of wide fleet of ARC Weldding Transformer. In order to offer these optimum quality products to clients in a stipulated time frame,we are associated with some of the most trusted vendors of the industry. These welding ARC Weldding Transformers are known for attributes like easy to operate, low power consumption, safe, durable, smooth operation, negligible maintenance cost, trouble-free and longer lasting, and the likes.


SCOPE AND APPLICATIONS


    "VULCAN" heavy duty machines are very effective for fast production, structural work, machine building & fabrication, filling jobs, worn-out machine parts repair and in arc cutting jobs. "VULCAN" shunt type machines are the swiftest to offer stepless regulation in welding current to match all operations while the stud type machines outperform all in ruggedness in truly heavy-duty applications.

    Yielding quite higher performance to cost ratio compared to any other machines in the market. Built with the latest trends in design and manufacturing and tested to the most stringent standards to offer years of trouble free service.

    Yet, awaiting your evaluation and approval of all virtues for your own applications.




SALIENT FEATURES

  • Modern looks, novel design concepts.
  • Epoxy powder coated body for rust free long life.
  • Coil varnishing by vacuum pressurized impregnating varnishing system to enhance reliability and services life.
  • High efficiency, energy saving, low maintenance.

SPECIFICATION

PARTICULARS
UNITS
300
400
508
608
Input Supply
Volts
380-415
Phase

1 (2 lines of 3 phase supply)
Frequency
Hzs.
50
Open Circuit Voltage (OCV)
Volts
60*
80
Insulation
Class
'A' OR 'F'
Max. Continuous Hand Welding Current at 60% Duty Cycle
Amps
300
400
500
600
Max. Continuous Automatic Welding Current at 100% Duty Cycle
Amps
220
310
375
450
Cooling

Natural Air
REGULATOR (shunt) type Machine Max. Dimensions (Approx)
L-MM
W-MM
H-MM
785
910
500
560
660
710
Weight (Approx)
Kgs.
100
120
147
160
STUD type Machine Max. Dimensions (Approx)
L-MM
W-MM
H-MM
510
560
830
940
640
620
Weight (Approx)
Kgs.
105
125
140
150
Confirm To

IS-1851-1975
  • Usually Standard Regulator type models are provided with 60 OCV. We can also supply different models with different OCV as per specific requirement.
