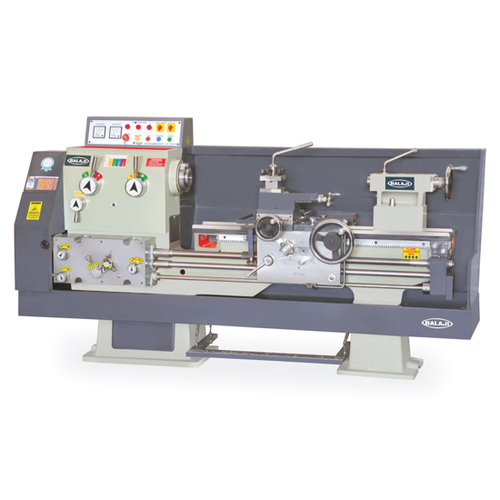

Geared Head Heavy Duty Lathe Machine

Geared Head Heavy Duty Lathe Machine
Geared Head Heavy Duty Lathe Machine
Product Code : 02
Product Description
Description
  TECHNICAL DATA AND SPECIFICATIONS FOR STANDARD MODEL VGH-1, VGH-2, VGH-3, VGH-4, VGH-5.    (All Dimensions in m.m.)
MODEL ADMIT
BETWEEN
CENTRES
LENGTH
OF BED
Floor Space
Occupied (m.m.)
Aprox. Weight
in kgs.
Aprox. Case
Dimensions
(m.m.)
Nett. Gross
VGH - 1 1000 m.m. 2135 m.m. (7') 2660 x 1450 1500 1900 2850 x 1300 x 1600
VGH - 2 1600 m.m. 2745 m.m. (9') 3140 x 1450 1650 2150 3350 x 1300 x 1600
VGH - 3 1900 m.m. 3050 m.m. (10') 3500 x 1450 1900 2450 3700 x 1300 x 1600
VGH - 4 2500 m.m. 3660 m.m. (12') 4110 x 1450 2050 2650 4300 x 1300 x 1600
VGH - 5 3100 m.m. 4270 m.m. (14') 4720 x 1450 2350 2950 5000 x 1300 x 1600
Width of Bed :   325 m.m. (13")
Centre Height over flat bed ways :   267 m.m. (10.5")
Swing Over Bed :   525 m.m.
Swing Over Cross Slide :   300 m.m.
Swing In Gap :   830 m.m.
Length of Gap in front of Face Plate :   200 m.m.
Cross Slide travel :   280 m.m
Compound Slide travel     145 m.m

  MAIN SPINDLE :
Type of Spindle Nose :   A 2 - 6 Type
Spindle Morse Taper :   MT-6
Spindle Adapter Morse Taper :   MT-4
Spindle Speeds Nos. / RPM Range
(Motor RPM 1440)
:
12 30, 43, 55, 85, 115, 160,           RPM
  210, 285, 400, 545, 785, 1060. RPM
OPTIONAL
Spindle Speeds Nos. / RPM Range
(Motor RPM 960)
:
12 20, 28, 35, 55, 75, 105,             RPM
  140, 190, 265, 360, 520, 705.   RPM
Spindle Mounting on :   Taper Roller Bearings

  TAIL STOCK SPINDLE : Diameter : 60.3 m.m. / Travel : 180 m.m. / Morse Taper : MT-4
  LEADING SCREW : Diameter / Threads : 38 m.m. / 4 TPI
THREADS
Nos. of Threads / Range
ForFully norton Gearbox)
Metric :
Inch :
24 / 0.5 m.m. To 15 m.m. Pitch
44 / 2 to 60 TPI
FEEDS
Nos. of Feeds / Range For
Fully norton Gearbox)
Longitudinal :
Cross :
40 / 0.066 to 2 m.m. / rev. of spindle
40 / 0.0165 to 0.5 m.m. / rev. of spindle

  ELECTRICALS :
Electirc motor of 3 HP / 2.25 k.w., 3 Phase, 1440 RPM with Panel board wirings, over load relay, Pushbutton switches, V-belts and fittings.

STANDARD ACCESSORIES :
Flame Hardened bed ways
Chuck back plate 1 no
centre adapter
Dead centres (MT - 4) 2 nos
Tool Post Spanner
Motor pulley
Thread dial indicator
Change gear set - 1 (For metric and inch both) and Norton gearbox

OPTIONAL ACCESSORIES :
Face plate
Carrier plate
steady rest
follow rest
Taper turning attachment
motorised coolant pump with tank and fittings
Rear tool post with extended cross slide
Chuck back plates (Extra)
Electricals (Motor, Panel board, Wirings, Push button Switches, V-belts and fittings)
Electrical Switch shaft
Electro Magnetic Padel Brake
splash guard.
