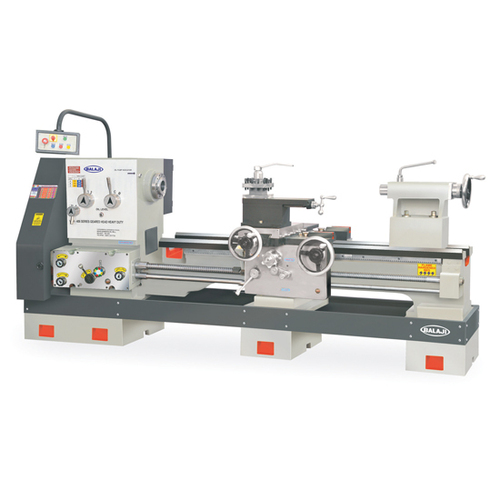

Heavy Duty Lathe Machine

Heavy Duty Lathe Machine
Heavy Duty Lathe Machine
Product Code : 03
Product Description
Description
  TECHNICAL DATA AND SPECIFICATIONS FOR STANDARD MODEL VGH-1, VGH-2, VGH-3, VGH-4, VGH-5, VGH-6, VGH-7, VGH-8
  (All Dimensions in m.m.)
Width of Bed :   452 m.m. (18")
Centre Height over flat bed ways :   406 m.m.
Swing Over Bed :   790 m.m.
Swing Over Cross Slide :   525 m.m.
Swing in Gap     1190 m.m.
Length of Gap in front of Face Plate     200 m.m.
MODEL ADMIT
BETWEEN
CENTRES
LENGTH
OF BED
Floor Space
Occupied (m.m.)
Aprox. Case
Dimensions
(m.m.)
VGH - 1 700 m.m. 2135 m.m. (7') 2660 x 1600 2850 x 1500 x 1800
VGH - 2 1300 m.m. 2745 m.m. (9') 3140 x 1600 3350 x 1500 x 1800
VGH - 3 1600 m.m. 3050 m.m. (10') 3500 x 1600 3700 x 1500 x 1800
VGH - 4 2200 m.m. 3660 m.m. (12') 4110 x 1600 4300 x 1500 x 1800
VGH - 5 2800 m.m. 4270 m.m. (14') 4720 x 1600 5000 x 1500 x 1800
VGH - 6 3400 m.m. 4875 m.m. (16') 5330 x 1600 5550 x 1500 x 1800
VGH - 7 4020 m.m. 5485 m.m. (18') 5940 x 1600 6100 x 1500 x 1800
VGH - 8 4630 m.m. 6095 m.m. (20') 6550 x 1600 6710 x 1500 x 1800
MAIN SPINDLE : Spindle Bore : 104 m.m.
Type of Spindle Nose :   A2 - 8 Type
Spindle Morse Taper :   MT - 6
Spindle Adapter Morse Taper :   MT - 5
Spindle Speeds Nos. / RPM Range :
9
19, 46, 65, 70, 90,   RPM
170, 240, 220, 310. RPM
Spindle Mounting on :   Taper Roller Bearings
  TAIL STOCK SPINDLE : Diameter : 76.2 m.m / Travel : 180 m.m / Morse Taper : MT - 5
 LEADING SCREW : Diameter / Threads : 44.45 m.m. / 4 TPI
THREADS
Nos. of Threads / Range
(For Fully norton Gearbox)
Metric :
Inch :
24 / 0.5 m.m. To 15 m.m. Pitch
44 / 2 to 60 TPI
FEEDS
Nos. of Feeds / Range
(For Fully norton Gearbox)
Longitudinal :
Cross :
40 / 0.066 To 2 m.m. / rev. of spindle
40 / 0.0165 To 0.5 m.m. / rev. of spindle
  ELECTRICALS :
  Electric Motor of 5 H.P. / 3.72 k.w., 3 Phase, 960 RPM with Panel board wirings, over load relay Pushbutton switches, V-Belt and fittings.
STANDARD ACCESSORIES :
Flame Hardened bed ways
Chuck back plate 1 no
centre adapter
Dead centres (MT - 5) 2 nos
Tool Post Spanner
Motor pulley
Thread dial indicator
Change gear set - 1 (For metric and inch both) and Norton gearbox


OPTIONAL ACCESSORIES :
Face plate
Carrier plate
steady rest
follow rest
Taper turning attachment
motorised coolant pump with tank and fittings
Rear tool post with extended cross slide
Chuck back plates (Extra)
Electricals (Motor, Panel board, Wirings, Push button Switches, V-belts and fittings),
Electrical Switch shaft
Electro Magnetic Padel Brake
Splash guard
