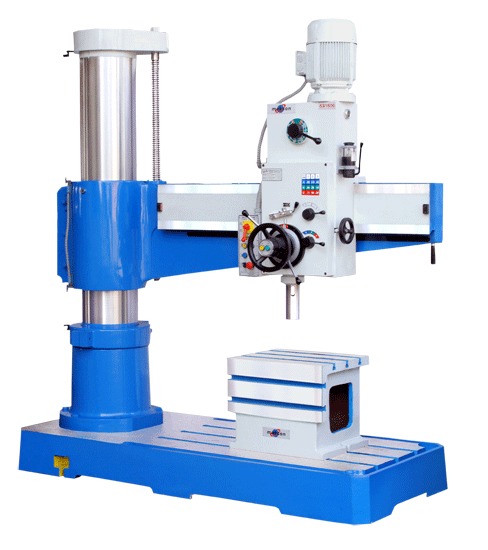

Radial Drilling Machine

Radial Drilling Machine
Radial Drilling Machine
Product Code : JMT05
Brand Name : JAGRUTI MACHINE TOOLS
Product Description

We are an eminent supplier and trader of wide gamut of Radial Drilling Machine. Available in different sizes and specifications, these machines successfully cater to all the variegated requirements of engineering and automobile industries. We source these drilling machines from some of the top notch vendors of the industry. Our range of Radial Drilling Machine is widely acclaimed for attributives like corrosion resistance, finely finished, sturdiness, robust construction, accurate dimensions and reliability,etc.


CAPACITY 60-1600 60-2000 80-2500 40 - 1000 DC
Drilling [C.I.] 60 60 80 45
Drilling [M.S.] 70 70 90 40
Boring [M.S.] 80 80 150 80
Tapping [C.I.] 25 25 50 20
Tapping [M.S.] 30 30 55 16
Drilling Head
Spindle Nose MT - 5 MT - 5 M.T.-6 M.T.-4
Spindle Nose Outside Diameter 80 80 110 60
Spindle Slive Diameter 110 110 120 80
Travel of Spindle 300 300 350 250
Number of Spindle
Speed Min./Mix.
10 10 12 12
  30 - 1500 30 - 1500 20-900 55 - 1500
Number of Power Feeds 9 9 6 3
Range of Power Feeds 0.08 + 1.15 0.08 + 1.15 0.05 - 0.90 0.10 + 0.3
Power
Drilling Head 5 HP 5 HP 10 HP 2 HP
Motor 1440 + 2800 1440 + 2800 1440 + 2800 1440 + 2800
Elevating Motor for Arm 3 HP, 1440 RPM 3 HP, 1440 RPM 3 HP, 1440 RPM 1 HP
Hydraulic Clamping Motor 1 HP, 1440 RPM 1 HP, 1440 RPM 1 HP, 1440 RPM 1440
Working Range
Column Diameter 350 400 500 220
Dist. From Spindle to base min./mix. 400 x 1400 690 x 1590 450 x 1400 400 x 1100
Dist. From Column to centre min./mix. 385 x 1600 385 x 2100 400 x 2250 250 x 1080
Drilling Head Travers 1215 1715 1900 800
Drilling Radius Min. / Max. 570 - 1775 600-2200 650-2500 1110
Traverse of Arm 840 950 900 600
Base Plate
Height of Base Plate 250 250 250 180
Working Surface 930 x 1400 1050 x 2000 1200 x 2200 800 x 1150
Number/Centre Dis of T Sloth Length 3 4 4-200 3
Width of Cast Side 22 mm 28 mm 28 mm 18 mm
Oerall Dimensions [ L x W x H ] 2500 x 1200 x 2750 3280 x 1520 x 2900 2800 x 1200 x 3000 1640 x 810 x 2160
Weight
Approximate 4000 kg. 6000 kg. 10500 kg. 1600 kg.
