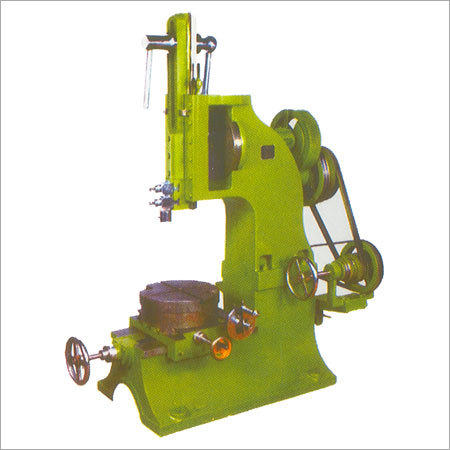

Slotting Machine

Slotting Machine
Slotting Machine
Product Code : JMT12
Brand Name : JAGRUTI MACHINE TOOLS
Product Description

We are counted among some of the most promising suppliers and traders of Indian domestic market. Ever since our inception we are engaged in bringing forth a comprehensive ambit of Slotting Machine . Our wide spread clientele appreciate and demand for these machines due to many features like wear and tear resistant, robust and rigid construction, dimensional accuracy, hassle free performance and so on. Also, our range of Slotting Machine is procured from reliable vendors of the industry.



Technical Data





Stroke Maximum 101 mm ( 4" ) 180 mm ( 7" ) 203 mm ( 8" ) 228 mm ( 9" ) 305 mm ( 12" ) 405 mm ( 16" )
Stroke Minimum 20 mm 20 mm 20 mm 20 mm 25 mm 20 mm
Maximum Dia. Accomodated When Machining at Cente 560 565 630 825 1010 1400
Distance between table & Head 330 370 405 421 550 600
Diameter of Table 270 270 355 355 425 520
Traverse of Table Longitudinal 220 245 300 400 700 900
Traverse of Table Transverse 180 180 235 235 360 425
Height of Overall 950 1180 1350 1450 1670 2300
Lenght of Bed 610 680 860 970 1370 1480
Width of Bed 270 275 320 320 355 410
Height of Bed 250 280 320 340 390 425
Height of Head 510 715 820 920 1010 1550
Face of Head 280 X 190 350 X 195 421 X 215 445 X 228 530 X 340 610 X 360
Number of Speed 2 2 2 3 3 3
Number of Ram Cycle per Minute 48, 58 48, 58 45, 55 42, 52, 62 26, 36, 46 35, 45, 55
Electric Motor Required:





Output ( H.P. ) 1 1 1.5 1.5 2 3
Speed ( R.P.M ) 960 960 1440 1440 1440 1440
V Belt required





Size A-60 A-62 B-65, B-60 B-65 B-80 B-85
Nos. 2 2 2+2 2+2 2+2 2+2
Net Weight ( Approx ) Kg. 360 400 600 825 1400 1850
